Equation of electric field as function of position

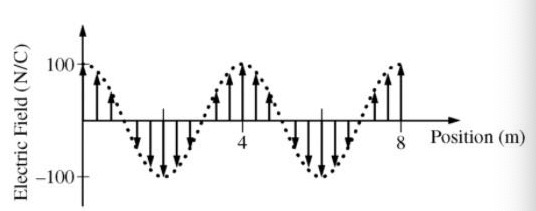

The figure above represents the electric field `E` as a function of position `x` due to a particular radio wave at time `t=0 s`. which of the following equations correctly describes the electric field?
This is a `cos` function with wavelength `λ = 4 m` and amplitude `A = 100 N//C`.
`E = Acos((2π)/λ x )`
`E = (100 N//C)cos((2π)/(4 m) x )`
`E = (100 N//C)cos((πx)/(2 m) )`
|
